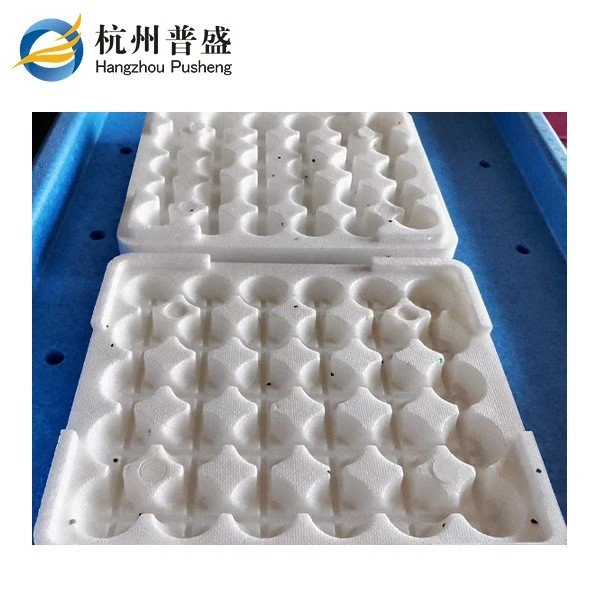

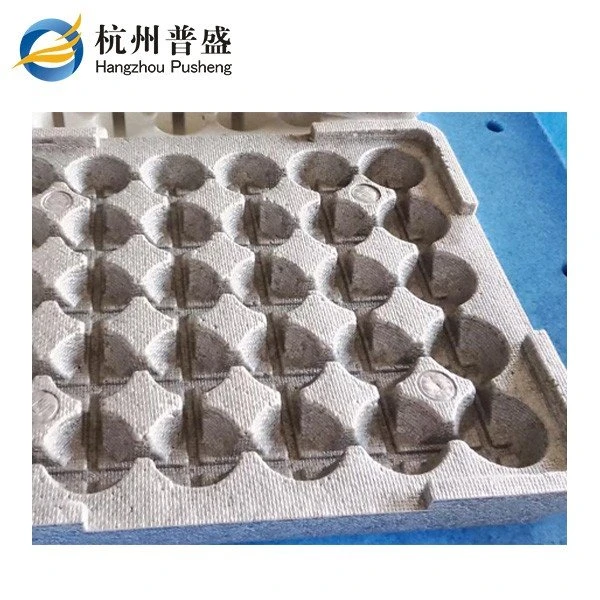

Expanded Polypropylene (EPP) yog ntau yam kaw-cell hlaws ua npuas ncauj uas muab ntau yam khoom tshwj xeeb, suav nrog lub zog nqus, ntau yam cuam tshuam, thermal rwb thaiv tsev, buoyancy, dej thiab tshuaj tiv thaiv, tshwj xeeb tshaj yog muaj zog rau qhov hnyav piv thiab 100 feem pua. recyclability. Rau nws cov kev ua tau zoo heev, epp ua npuas ncauj yog dav siv los ua qhov chaw pib, rooj tog zaum thiab cov khoom ua si, thiab pob, zoo li qe tais los ntawm peb lub tshuab epp.

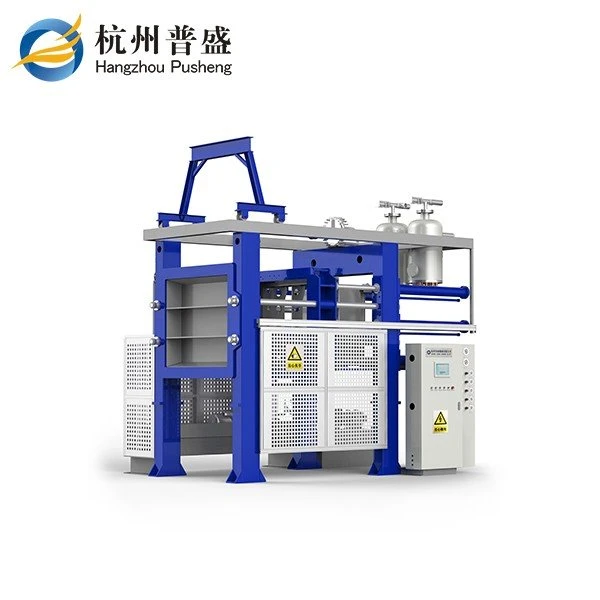

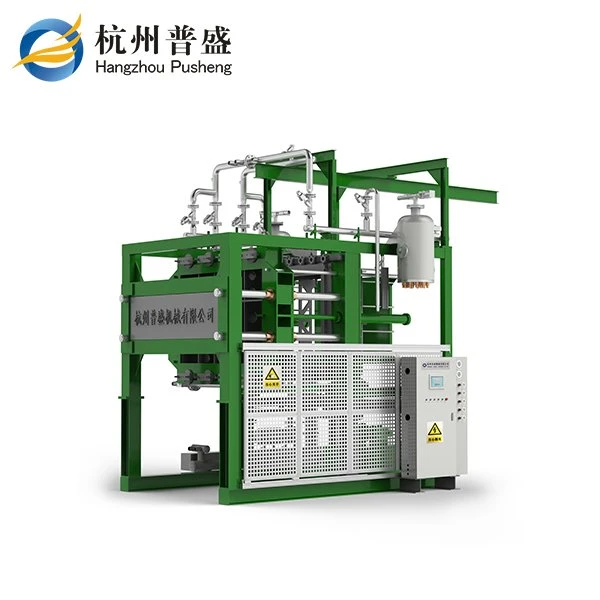

EPP Tshuab rau qe taistuaj yeem kho raws li qhov muaj peev xwm thov. Raws li thawj cov chaw tsim khoom ntawm Polypropylene ua npuas ncauj tshuab, Hangzhou Pusheng tuam txhab tau tsim ntau yam qauv k hom tshuab tau tshaj lub tshuab lub teb chaws Yelemees: K813 nrog pwm dimension 800 * 1300mm, K1018 nrog pwm dimension 1000 * 1800mm, K1214 nrog pwm dimension 1200 * 1400mm, K1318 nrog pwm loj 1300 * 1800mm.
Technicalcov ntaub ntawv rauEPP tshuab:
Yam khoom | Chav tsev | Hom/Technical Data rau EPP Tshuab | |||
PAB 813JN | PIB 1214JN | PAB 1318JN | |||
Txheem pwm Dimension | mm | 800*1300 | 1200*1400 | 1300*1800 | |
Max. Khoom Dimension | mm | 700*1200*400 | 1100*1300*600 | 1200*1700*600 | |
Yam tsawg kawg Pwm Thickness | mm | 220 | 220 | 220 | |
Pwm xauv quab yuam | ton | 55 | 90 | 115 | |
Qhia rod diameter | mm | ¢90 | ¢90 | ¢100 | |
Roj lub tog raj kheej | Sab hauv dia. | mm | ¢100 | ¢125 | ¢140 |
Qty. | pcs | 2 | 2 | 2 | |
Khoom siv hopper | Ntim | Liter | 150 | 150 | 150 |
Tawm qty. | pcs | 44 | 44 | 44 | |
Mounting Interface | Cov khoom nyoos | / | DN40 | DN40 | DN40 |
Chav | / | DN100 | DN100 | DN100 | |
Compressed cua | / | DN 50 | DN 50 | DN 50 | |
Cov dej txias | / | DN 80 | DN 80 | DN 80 | |
Dej ntws | / | DN150 | DN150 | DN150 | |
Qhov cua | / | DN 65 | DN 65 | DN 65 | |
Kev noj haus | Chav | Kg / lub voj voog | 12~15 | 13~18 | 18~25 |
Compressed cua | m3/qib | 1.2 | 1.3 | 1.5 | |
Cov dej txias | Kg / lub voj voog | 50-80 | 60-100 | 150-180 | |
Txuas load | Hydraulic lub cev muaj zog | Kw | 5.5 | 7.5 | 7.5 |
Lub tshuab nqus tsev twj | Kw | 4 | 5.5 | 7.5 | |
Tag nrho qhov ntev | mm | 4500*3000*4300 | 5200×3100 ×4300 | 6200×3500 ×4300 | |
App. tshuab hnyav | Kg | 5000 | 8000 | 10000 | |
